Domain Controller Cloning with Windows Server 2012

Windows server 2012 brings a set of new features and capabilities that will make IT admins life easier . In this post I will demonstrate Virtualized Domain Controller ( VDC ) as a new innovative way to create additional domain controllers.
VDC is a technique that allows you to simply get a new – cloned - virtualized domain controller from another virtualized one without going into the hassle of  OS installation , OS patching and domain controller promotion.
In order to perform VDC – clone a domain controller – some condition must be justified , as below :
  • PDC emulator FSMO role are located at a Windows Server 2012 RC DC
  • PDC emulator available during cloning operations [ PDC emulator DC cannot be used for DC cloning ]
  • The Hyper-V host must be joined the same domain
  • The source Windows Server 2012 RC domain controller cannot have been previously migrated from FRS to DFSR for SYSVOL
My lab setup will be as follow :
Hostname Roles IP Mask DNS
ITGD-HV01 Hyper-V 10.10.10.10 255.255.255.0 10.10.10.11 | 10.10.10.12
ITGD-DC01 ADDS & DNS 10.10.10.12 255.255.255.0 10.10.10.11 | 10.10.10.12
ITGD-DC02 ADDS & DNS 10.10.10.12 255.255.255.0 10.10.10.12 | 10.10.10.11
  • ITGD-DC01 : Holds PDC emulator operation master
  • ITGD-DC02 : To be cloned domain controller
Target
  • To clone ITGD-DC02 to a new virtualized domain controller [ ITGD-DC03 ]
Procedure
Ensure that PDC emulator is located at on a Windows 2012 server [ ITGD-DC01 ] , which can be achieved by executing :
  • Get-ADComputer (Get-ADDomainController –Discover –Service “PrimaryDC”).name –Property operatingsystemversion | fl

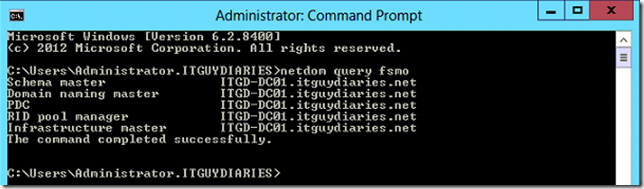

  • Nerdom Query FSMO

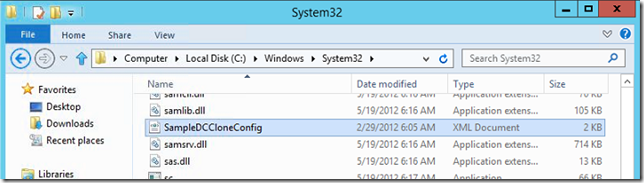

On ITGD-DC02 , go to C:\Windows\System32 and locate “SampleDCCloneConfig.xml

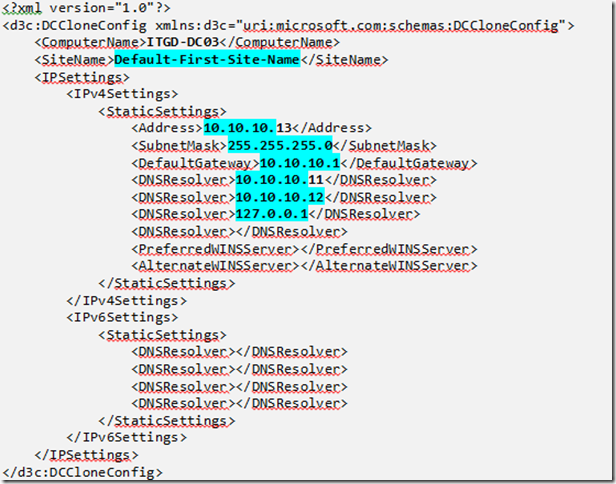

Open With Notepad , add Computer Name, Site Name , TCP/IP settings [ in bold below ]

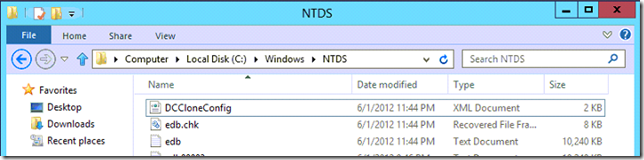

Save the file as DCCloneConfig.xml at C:\Windows\NTDS

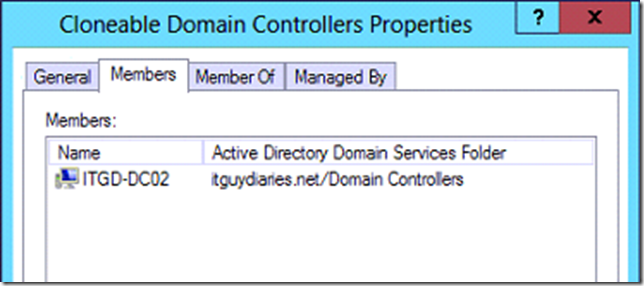

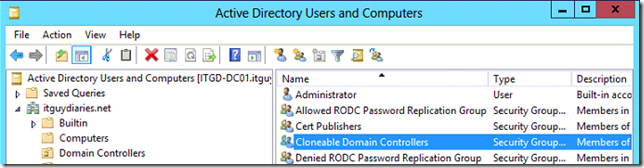

Use Active Directory Users and Computers snap-in to add ITGD-DC02 to “Cloneable Domain Controllers” group

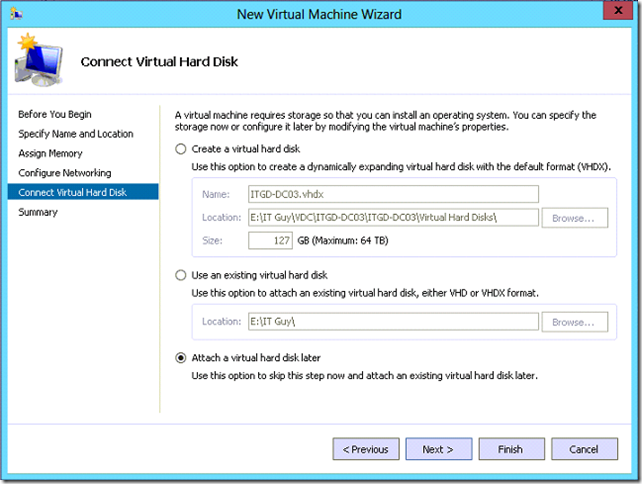

Shutdown ITGD-DC02 , create a new virtual machine [ ITGD-DC03 ]  , without a virtual disk

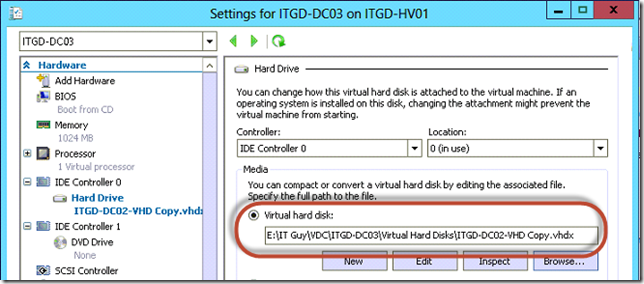

Copy ITGD-DC02 virtual disk to the new VM and attach it.

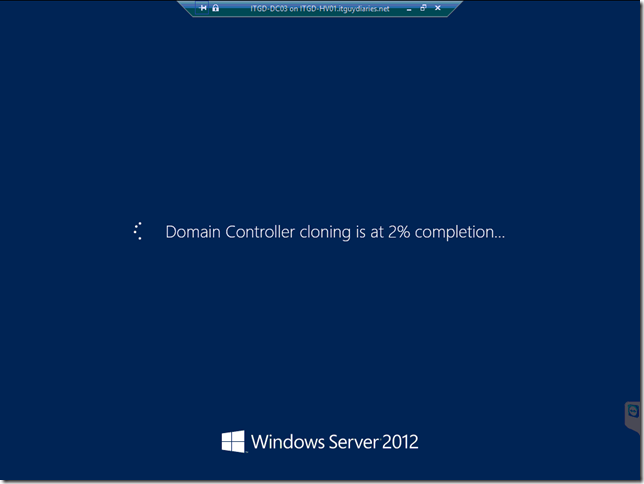

Power on ITGD-DC02 VM , then ITGD-DC03 VM and monitor domain controller cloning process
DC clone

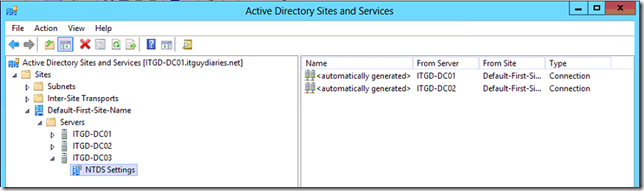

When completed , ITGD-DC03 will appear at Domain Controllers OU and under its designated site

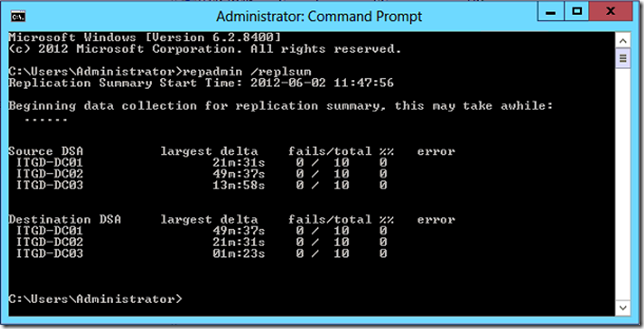

Finally , you can validate replication with Repadmin /replsum
Now my cloned domain controller [ ITGD-03 ] are functioning after being cloned ; awesome , isn’t ? . Go and try it yourself Winking smile
Reference : Active Directory Domain Services (AD DS) Virtualization
